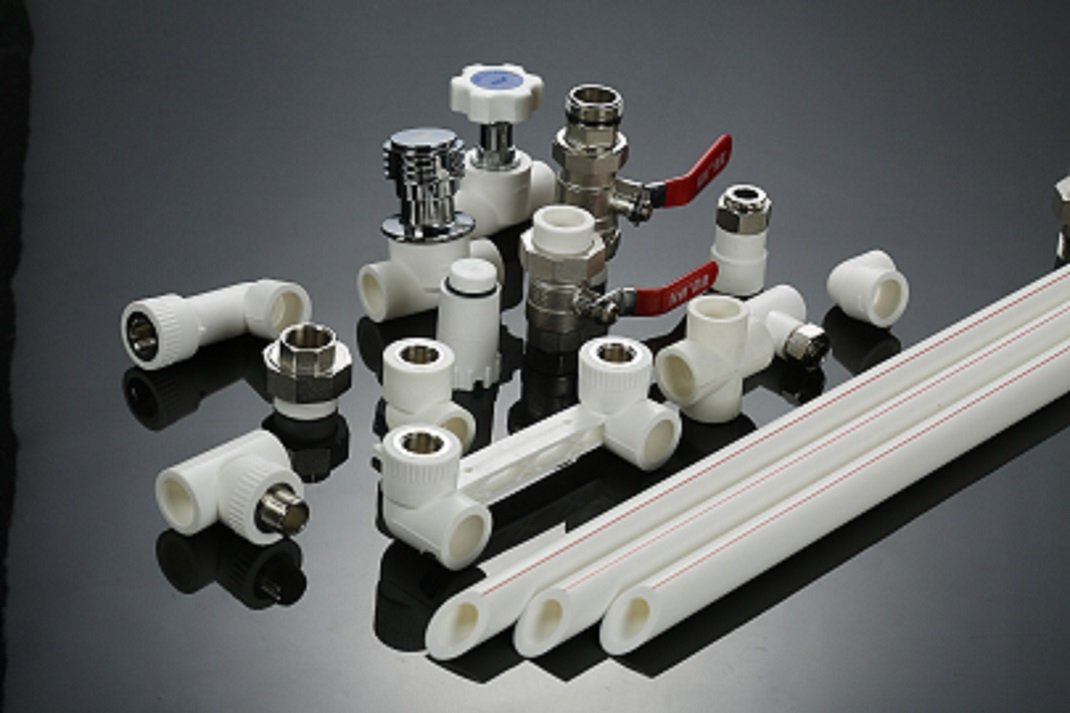

PPR Pipe & Fitting

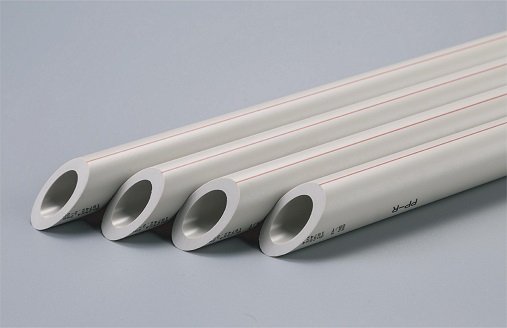

PPR Pipe
Due to its characters of heat-preservation, energy-saving, sound insulation and non-toxic. PPR pipe is widely used to install potable water pipe networks for cold and warm water.
Application Fields
As a typical construc tion material, PPR pipe is mainly used in the followings fields:
- Residential buildings and hotels use Potable water supply
- Residential houses use heating pipes;
- Industry used pipe networks i.e. transport of aggressive fluids.
PPR Pipe Features
Safe and Convenient Connection
PPR pipe is more convenient and reliable due to its hot-melting connection.
Good Chemical Resistance
PPR pipe is made of polypropylene material which is resistant to corrosion and is optimal to transport potable water and other fluids of any PH values.
Heat-Preservation and Energy-Saving
Its thermal conductivity is only 0.24 W/mk which is 1/200 of that of metal materials. Therefore, extra heat insulation layer is of no need.
Recyclable
PPR pipe can be recycled after being used for a certain time and it has a long life of at least 50 years.
Noise Insulation
It can transport large water flow and reduce noise.

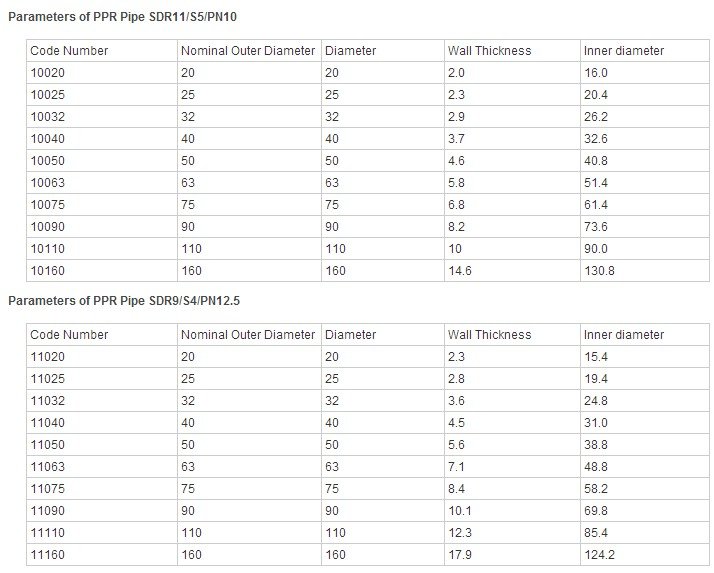

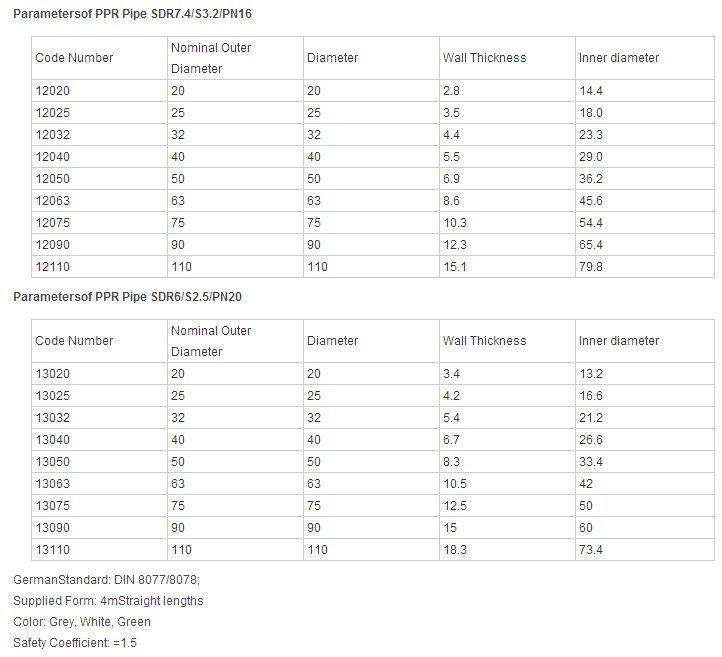

PPR Pipe Parameter
Installation Guide
Cut and Clean
Measuring fusion depth and mark it, two ends should be cut out 4-5cm. Cleaning the fusion surface of pipe and fittings with alcohol, keep it dry.
Heating
Turn on the power source, it’s unavailable to work until the green light is on, the temperature is between 260-280°C
Connecting

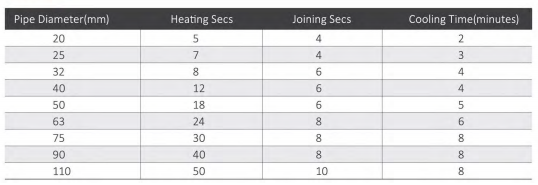

Insert the pipe and fitting horizontally into the welding tools. Heating time refer to table below. Connect the heated pipe and fitting exactly and adjustment finish in 5s.
Cooling
After the cooling period, the fused joint is ready for use.
